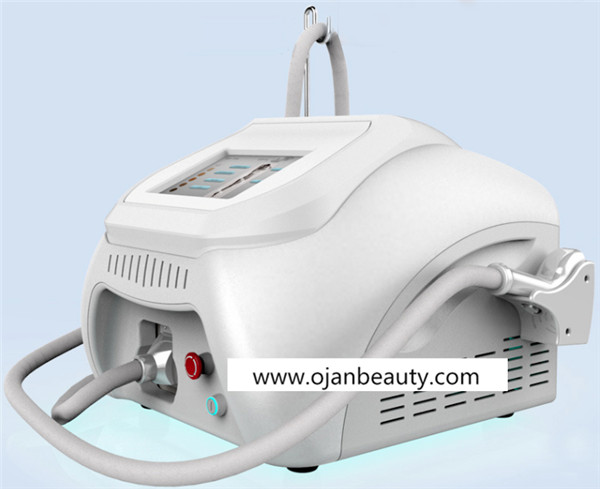

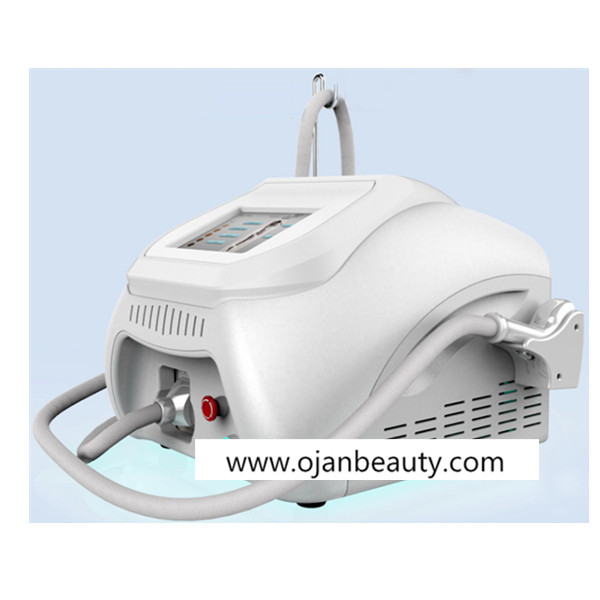

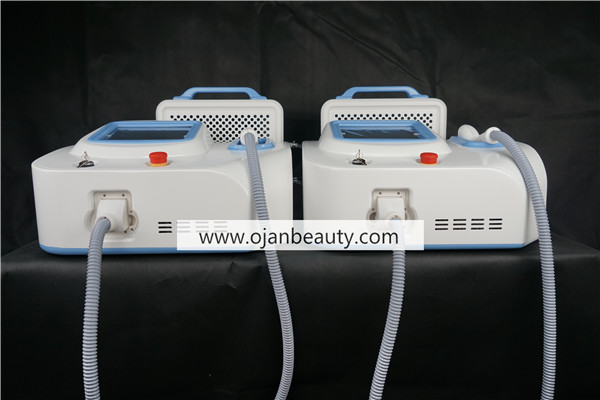

808nm Diode Laser Permanent Hair Removal Machine MX-90
808nm laser system, use special laser with long Pulse-Width 808nm, can penetrate to hair follicle .
Using selective light absorption theory laser can be preferentially absorbed by heating the hair shaft and
hair follicle, moreover to destroy the hair follicle and oxygen organization around hair follicle.
When laser outputs, system with special cooling technology, cool the skin and protect skin from being
hurt and reach a very safe and comfortable treatment.

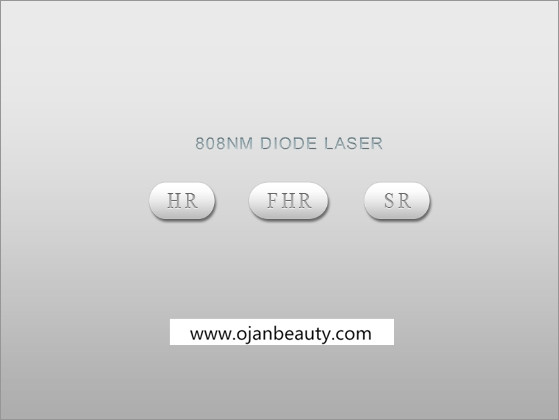

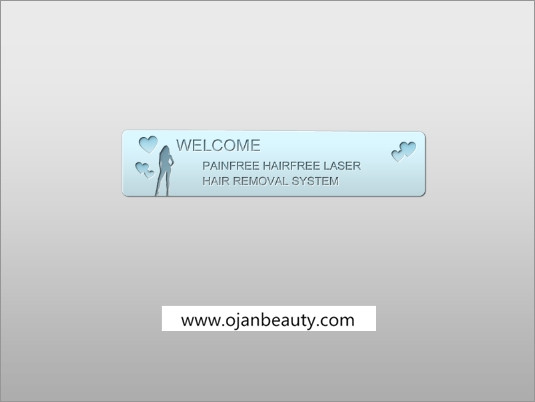

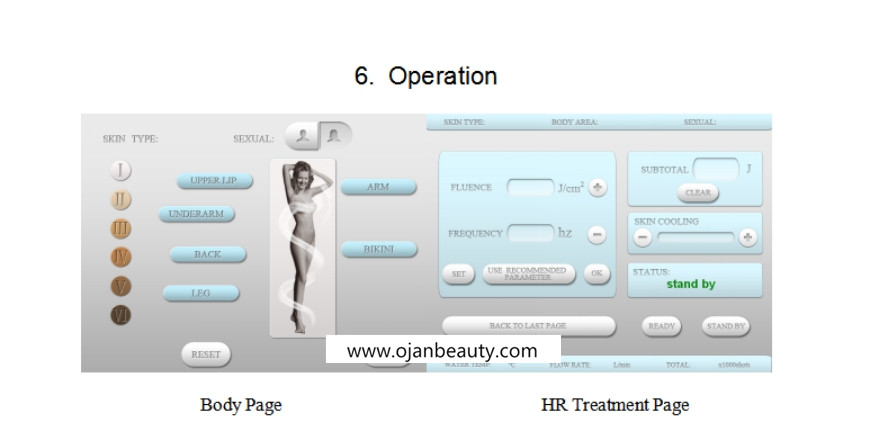

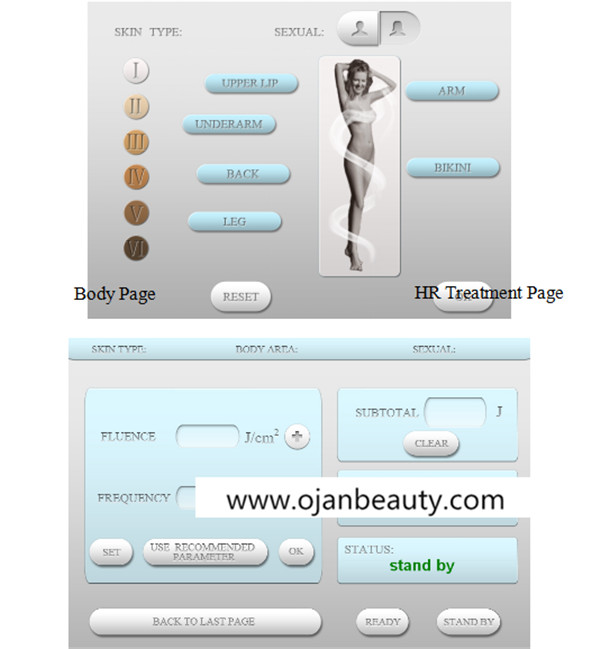

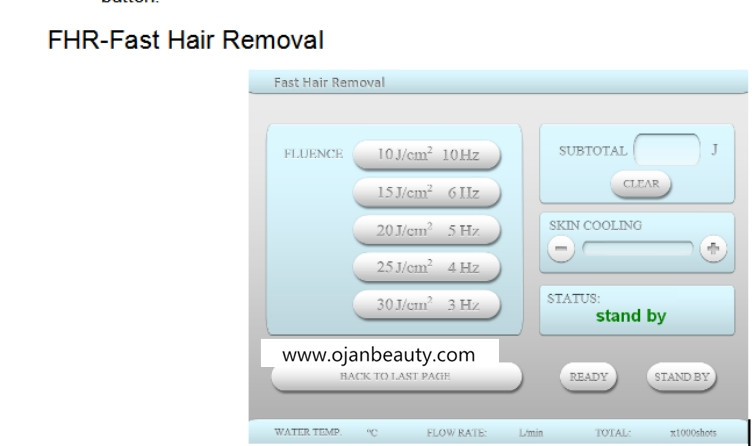

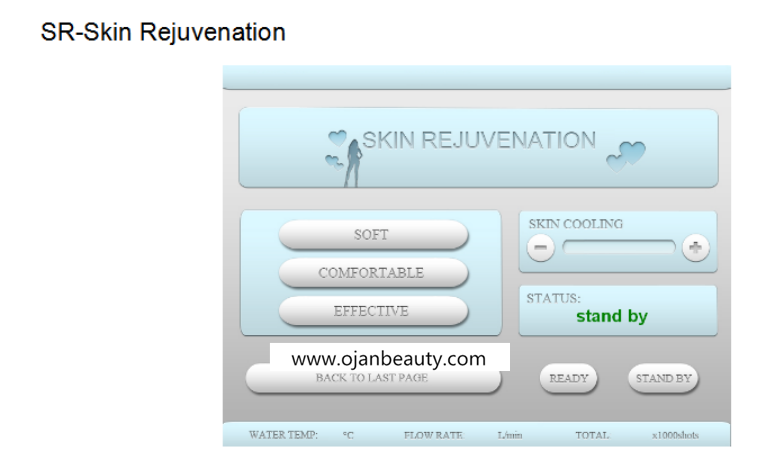

Operator interface

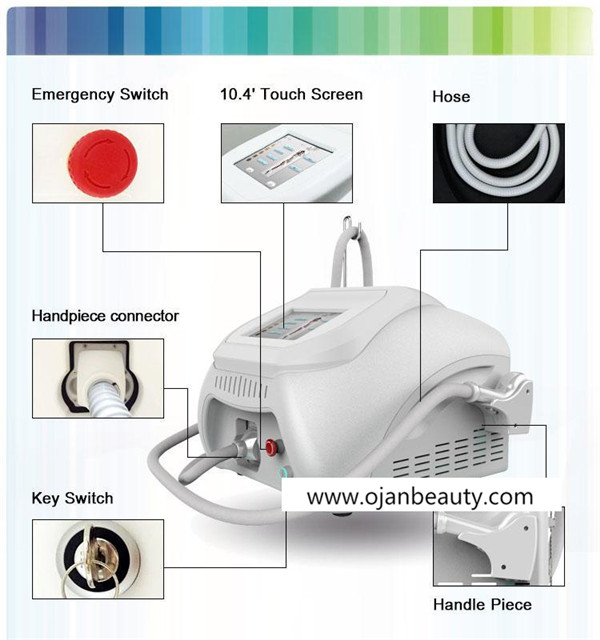

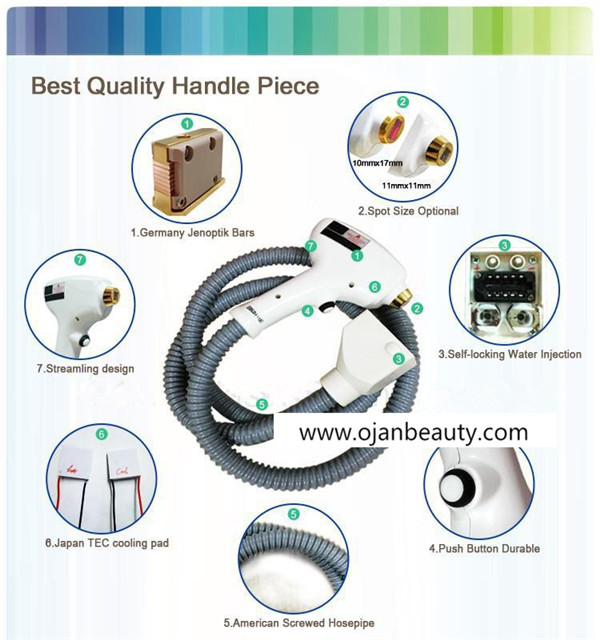

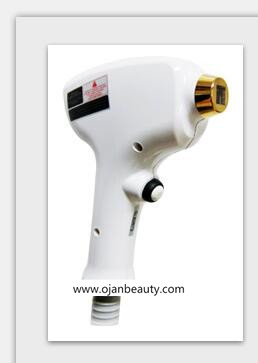

Handpieces:
Packing lise
Part | Quantity | Note |
Laser Machine | 1 SET | Laser machine with case |
Handle Piece | 1 PC | |
Pedal Switch | 1 PC | |
User Manual | 1 PC | |
VAC Plug Wire | 1 PC | Not attached for Frame machines |
Water Tube | 1 PC | Not attached for Frame machines |
Plastic Funnel | 1 PC | Not attached for Frame machines |
Technical Specifications
Model | MX-91 |
Energy Fluence | 0~120J/cm2 |
Wavelength | 808nm |
Pulse Width | 0ms~600ms |
Repetition Rate | 1Hz~10Hz |
Skin Cooling temperature | -5℃--5℃ by cooled Sapphire |
Spot size | 11x11mm |
Interface language | English |
LCD Screen | 10.4’ |
System Cooling method | Freon compressor |
Input VAC | 220VAC / 50-60Hz |
Shell Dimension | 560x520x400cm |
Weight of machine without case | 35KG |
Laser Cooling Liquid | Distilled-water |
Water Tank Volume | ~3.3L |
Handle Piece Flow Rate | 4.5L/min+-10% |
Cooling water temperature | 23~28℃ |
Working Environment Temperature | 15~25℃ |
Environment Moisture | <70% |
